PE Pipe & tube

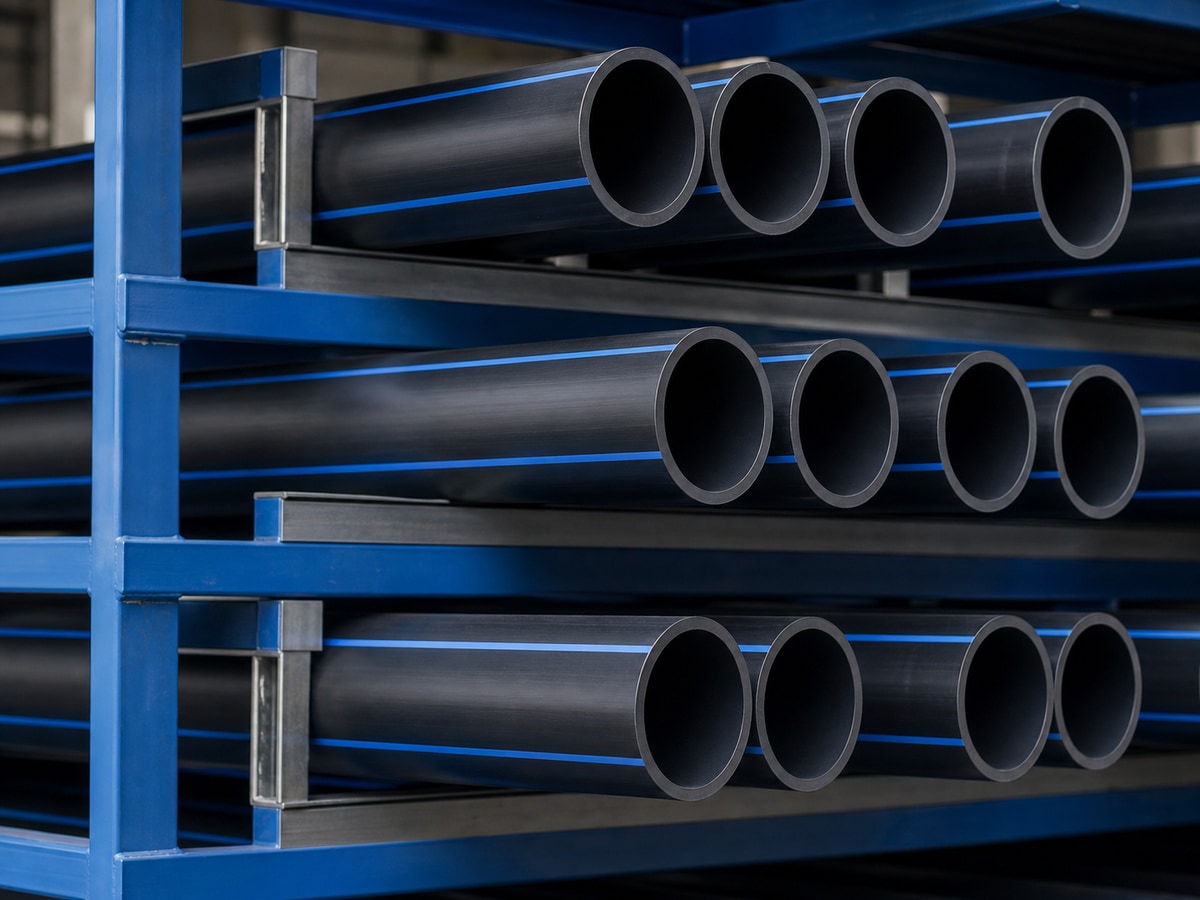

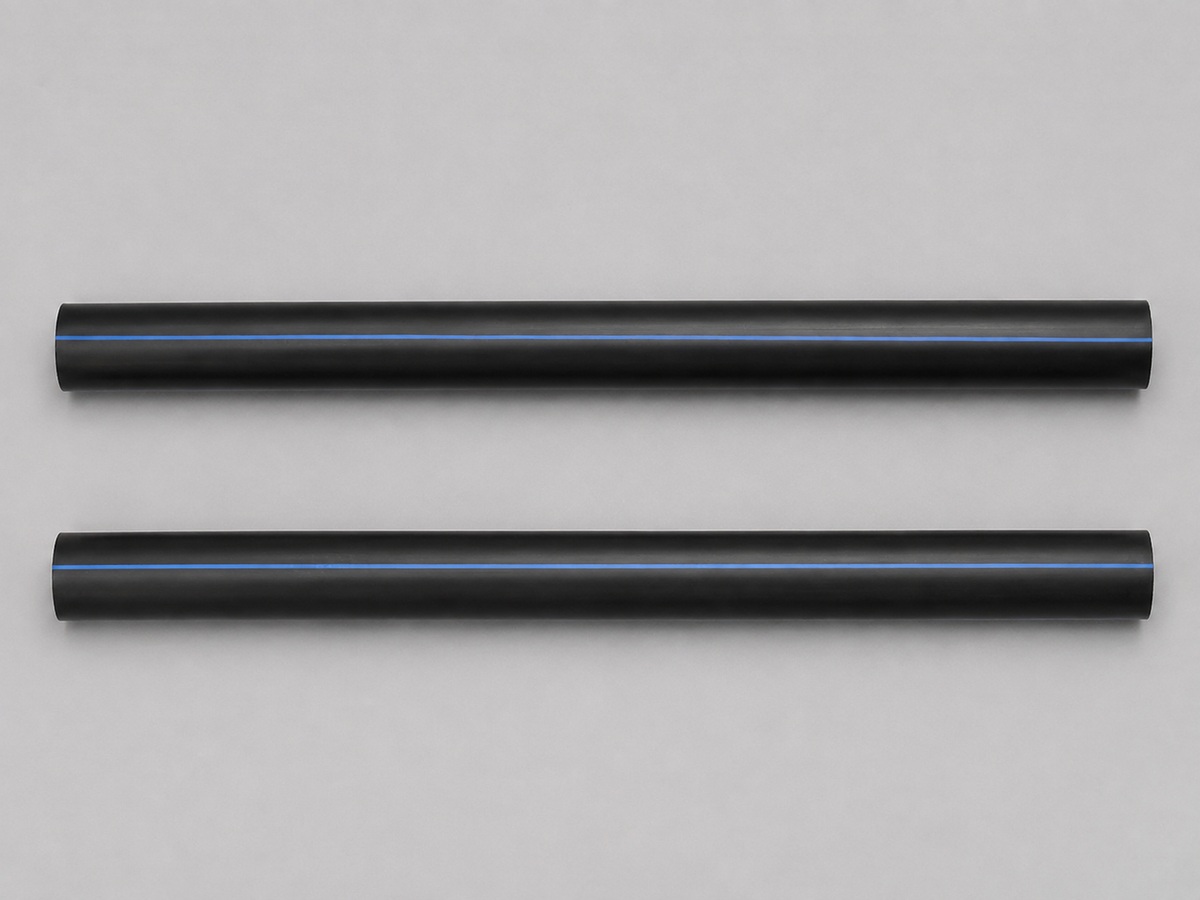

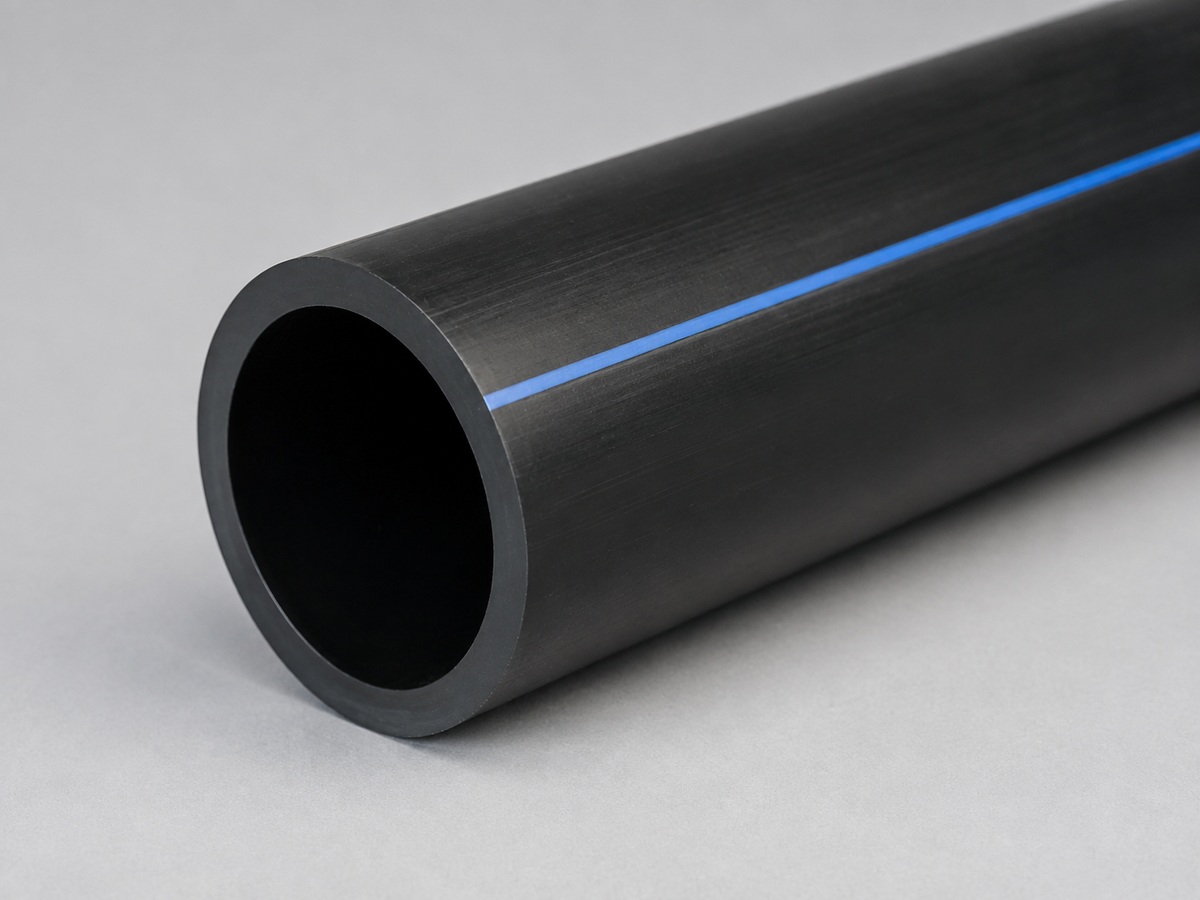

Pe Pipe
Pe Pipe is supplied as pipe & tube. Specification: DN20–DN1400 mm. Pressure: PN 0.6Mpa–PN 2.0Mpa. Grade references include PE80 PE100. Features: · Environmental protection: Non–toxic any toxic additives.· Safety and Hygiene: widely apply in the drink water supply.· Excellent Durability: Over 50 years· Chemical Corrosion resistance, impact resistance, high wear resistance.· The brittle Temperature:–60ºC· Cost Saving with high–efficiency: Lightweight. Simple connection, simple maintenance. Referenced standards are GB/T 19001–2016, GB/T 13663–2018, GB/T 24001–2016, EN 1220–1:2011 EN12201–2:2011+A1:2013, EN1555–1:2010, EN1555–2:2010, EN ISO 1452–1:2009, EN ISO 1452–22009, EN ISO 1452–3:2010. Connection: Welding. Color: Black or Customized. Final grade, dimensions, finish and documentation are confirmed for the quotation.
- 01 · Material
- PE
- 02 · Form
- Pipe & tube
- 03 · Supply basis
- Project quotation
Confirm for order: grade · dimensions · finish · quantity · destination · documentation
Technical data
Product specifications
Dimensions
- Specification
- DN20–DN1400 mm
Material references
- Pressure
- PN 0.6Mpa–PN 2.0Mpa
- Grade references
- PE80 PE100
- Features
- · Environmental protection: Non–toxic any toxic additives.· Safety and Hygiene: widely apply in the drink water supply.· Excellent Durability: Over 50 years· Chemical Corrosion resistance, impact resistance, high wear resistance.· The brittle Temperature:–60ºC· Cost Saving with high–efficiency: Lightweight. Simple connection, simple maintenance
- Referenced standards
- GB/T 19001–2016, GB/T 13663–2018, GB/T 24001–2016, EN 1220–1:2011 EN12201–2:2011+A1:2013, EN1555–1:2010, EN1555–2:2010, EN ISO 1452–1:2009, EN ISO 1452–22009, EN ISO 1452–3:2010
- Connection
- Welding
- Color
- Black or Customized
One request. A complete specification.
Request a quote
Tell us the required size, grade, quantity, finish, destination and documentation. We will confirm the complete order specification before supply.
- Exact configuration confirmation
- Documentation and standards check
- Project-specific logistics
